EU Ship Autel MaxiIM IM508 Advanced Key Programmer Plus XP400 Pro Same IMMO Functions as Autel IM608PRO (No IP Blocking Problem)

Product Description

Autel MaxiIM IM508 Advanced Key Programmer Plus XP400 Pro Same IMMO Functions as Autel IM608PRO (No IP Blocking Problem)

Autel MaxiIM IM508 Highlights

📢Global Version without IP Blocking Problem

📢Powerful Cortex-A9 processor

📢 One Year Free Update Online On Autel Official Website

📢Android Operating System for Fast Boot-up and Multitasking

📢 Language Supported :English,Spanish, German, Russian,ltalian, Plish, Swedish, Portuguese, French, NetherlandsTurkish, Arabic,Czech, Hebrew,Indonesia,ltalian

📢Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services

📢Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

📢Advanced Maintenance Services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

📢2 Years Free Update and 1 Year Warranty

Kindly Note

If You Want to Release More Functions to Reach What IM608 Does on IMMO Function, You Can Buy IM508 with XP400 Pro Together

Autel IM508 Description

Combining powerful immobilizer and key programming capabilities with advanced automotive diagnostics and service functions, Autel's MaxiIM IM508 is THE one tool you want. This Android-based touchscreen tablet s powerful quad-core processor, intuitive design and straight-forward interface enables technicians of every level to quickly perform every needed task from simple maintenance to system diagnostics and key programming.

Autel IM508 is a professional car key programmer and immobilizer that combines key programming, all systems diagnosis and advanced service functions. With comprehensive IMMO related functions and programming capabilities, IM508 Car Key programming tool can perform: Read PIN/CS(All key lost), key generation, key learning, remote learning, IMMO ECU Reset/Adaptation/Refresh/Coding, IMMO Data Backup/Restore, read & write EEPROM and basic MCU read & write.

COMPARISON WITH IM608

With XP200 Key Programmer, IM508 Key Programmer Tool has all IMMO functions as IM608 except for Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning availability. With nearly 1/3 of its price, IM508 is a perfect affordable IMMO tool alternative for Autel IM608. IM508 is a professional automotive key programming tool that combines key programming, all car systems diagnosis and advanced service functions



IM508 Programmer Features

1. Powerful Cortex-A9 processor
2. 7" 1024x600 LCD capacitive touchscreen
3. Internal reliable 32GB Memory
4. Android Operating System for fast boot-up and multitasking
5. Powerful combination of key programming/all system diagnostics/advanced maintenance services
6. Smart Mode for guided and automated key learning
7. Expert Mode for advanced key learning
8. Read PIN/CS (all key lost) , key generation, key learning, remote learning
9. IMMO ECU reset/adaptation, refresh/coding
10. Transpronder read/write, EEPROM/ MCU read/write
11. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
12. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Autel IM508 EEPROM Read/ Write Supported Types

ATMEL
AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8, AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22, AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86

CATALYST
CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256

FAIRCHILD
NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T

MICROCHIP
85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640,25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040, 93C46X, 93C46A, 93C46, 93C46AX, 93C46BX, 93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86

NXP
PCF8582C, PCF8594C, PCF8598C

NATIONAL
NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66

OKI
MSM16911

SONY
CXK1011, CXK1012, CXK1013

Seiko
S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30

ST
M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ ST25x01, ST24x02/ ST25x02, ST24x04/ ST25x04/ ST24x08/ ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320, M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66

TOSHIBA
TC89101, TC89102, TC89121, TC89122

TMC
TMC93LC46, TMC93LC56, TMC93LC57, TMC93LC66, TMC93LC86

XICOR
X5043, X5045, X25043, X25045, X24C44

9S12 Read/ Write Supported Types
FREESCALE
MC9S12DG128

MaxiIM IM508 Functions

1. Professional Key Programmer

Autel IM508 is a professional car diagnostic scanner that provides extraordinary service functions for the immobilizer system, including: immobilizer system status, key learning, key add, all keys lost, remote control learning, remote control add, chip read and write. It' s a professional solution for car keys and remote controls and prevents your car from being stolen!

Smart Mode– accesses to a function menu where each function is configured as a smart guidesystem.
Expert Mode– accesses to a function menu where each function is separated from each other.
1) Read PIN / CS (All Key Lost)
2) Key Generation
3) Key Learning
4) Remote Learning
5) Backup / Restore IMMO Data
6) IMMO ECU Reset / Adaptation
7) IMMO ECU Refresh / Coding
8) BMW FEM / BDC Key Learning and ECU Adaptation
9) VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Key Lost, and More

IMMO

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc

2. XP200 KEY & CHIP PROGRAMMER

The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.

1) Key Read / Write
2) EEPROM / MCU Read / Write

3. OE-Level All Systems Diagnosis for 80+ Vehicle Makes

Autel IM508 Car Scanner can perform OE-Level diagnosis on all car electronic systems like ABS, SRS, Engine, Transmission and etc and show live data of multiple sensors. It is compatible with more than 80 American, Asian and European makes and models.
1) All Systems Diagnostics
2) AutoVIN / AutoScan
3) Read / Erase Codes
4) View, Record, Playback Live Data
5) View Freeze Frame Data
6) Shop and Data Manager Applications

4. Most Commonly Used Reset Services

Oil Rest Service: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.

EPB Service: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
SAS Service: Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.
TPMS Service: This function allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS replacement and sensor test.
BMS Service: The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF Service: This function is used to manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. Auto Scan Technology

The Autel IM508 professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems' faults and retrieve DTCs for efficient diagnosis.

6. Live Data & Review Freeze Frame Data

The IM508 car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the recorded data frames of live data streams.

7. Remote Technical Support

The Remote Desk application launches the TeamViewer Quick Support program, which is a simple, fast and secure remote control screen. You can use the application to receive ad-hoc remote support from Autel's support center, colleagues, or friends, by allowing them to control your MaxiIM tablet on their PC via the TeamViewer software

If You have the IM508 with XP400, You can do more

Software Newly Update

1. Volkswagen/ Audi Software Upgrad to V4.25
1) MQB All Key Lost Via OBD
* Support All MQB models with Megamos AES key
* All key lost: 30USD per vehicle
2) Applicable to all Autel IM products including IM608/ IM508/ Maxisys IM +XP200/ XP400/ XP400 Pro

2. GM Software Updated to V2.90
1) All Key Lost via OBD
* Support all models up to 2020, smart & Blade keys
* APPLICABLE TO ALL AUTEL IM PRODUCTS, INCLUDING IM608. IM508 AND MAXISYS IM
2) Support Models:
* CHEVROLET SILVERADO
* CHEVROLET CAMARO
* GMC SIERRA
* CHEVROLET EQUINOX
* CHEVROLET TRAVERSE
* CADILLAC XT5
* CHEVROLET CRUZE
* CHEVROLET TAHOE

How to Update Autel MaxiIM IM508?

1. Make sure the Display Table is connected to power source with stable access to the Internet.
2. Tap the Update application button from the MaxiIM Job Menu or tap the update notification message when received one;or tap the Update icon on Vehicle Menu in Diagnostics application.The Update application screen displays.
3. Check all available updates:
* If you device to update all the items of IMMO software,select IMMO Tab and then tap the Update All button;if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.
* If you only want to update one or some of the item(s),tap the Update button on the right colum of the specific item(s).
4. Tap the Pause buttons to suspend the updating process.Tap Continue to resume the update and the process will continue from the pause point.
5. When the updating process is completed,the firmware will be installed automatically.The version will replace the older version.

IM508 Specifications

Operating System	Android™ 4.4.4, KitKat
Processor	Cortex-A9 processor(1.6 GHz)
Memory	64GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 32GB)
Sensors	Ambient light sensor for brightness auto changing
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5V/1.5A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Operating Humidity	5%-95% non-condensing
Net Weight	885g(2.31|b.)
Supported Automotive Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel XP400 PRO Introduction

Autel XP400 Pro key and chip programmer, compatible with the IM508 and IM608, reads/writes and learns keys to the vehicle. The XP400 Pro enables programming of infrared keys for Mercedes vehicles and IC Chip keys on late model Hyundai KIA vehicles. It also performs EEPROM-data functions needed for European vehicles. The XP400 Pro supports data read/write of 3,000 plus chip types (inc. EEPROM, engine ECU, MCU, IMMO ECU).

XP400 Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more.  Also, added functions for EWS3, W209, NEC, and more.


Autel XP400 PRO Features

XP400 Pro is an advanced all-in-one key programmer
The key and chip programmer reads/writes and learns keys to the vehicle
Performs EEPROM-data Functions Needed for European Vehicles
Enables Programming of Infrared Keys for Mercedes Vehicles and IC Chip Keys on Late Model Hyundai Kia Vehicles
Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU)
Compatible with the IM508 and IM608,  IM100 and IM600 as well
(Note: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
Support key renewal on 11 key types with additional adapters - IMKPA, Key Programming Accessories Kit
One year free update online on Autel official website

XP400 PRO Highlights

【Advanced Version of XP400】As the 2022 latest key programmer accessory kit, upgraded version of XP400, XP400 Pro is added with more functionality for BMW, BENZ, as well as more powerful functions on EEPROM, MCU, ECU reading/writing. With the new protocols, XP400 Pro can read/write data of over 3,000 chip types to mostly satisfy your needs. NOTE: XP400 Pro+IM508/IM608/IM608 Pro is NOT universally supported. Please send VIN to us to check function before order.
【All-in-one Key Programmer】Autel XP400 Pro Car Key Programmer is designed to work with Autel IM508/ IM608 to expand the IMMO functions, including add a new key, IMMO ECU reset/adaption, IMMO ECU refresh/coding, remote learning, for AUDI Q5/ A4/A5 2015-2017 Key Learning, for VW MQB Key Learning, for BMW FEM/BDC/CAS4 key learning and adaption etc. NOTE: the IMMO functions are not all-vehicle supported, send VIN to us to check before order.

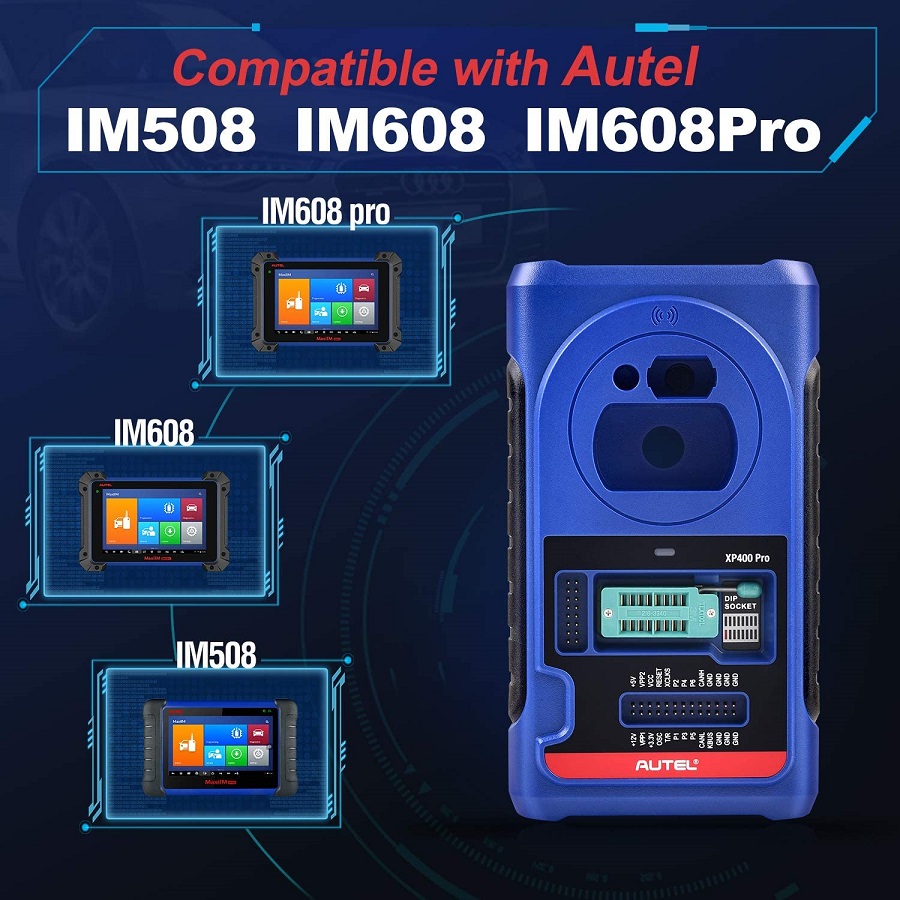

【Compatible with IM508, IM608, IM608PRO】The XP400 Pro programmer is designed to work with IM508, IM608, IM608 Pro key programmer to perform various IMMO Key programmings, key chip programming functions, MCU writing and reading and other key related tasks. Just like the XP400, XP400 Pro also has exactly same programming abilities whether working with IM508 or IM608, IM608 Pro, You can always choose among them and find yourself the suitable collocation.
【Unmatched Coverage of Key Chips & ECU】Autel XP400 Pro automotive key programmer tool can read/write 445 different key chips (newly added support of AM29FXXX series, MB29FXXX series), read/write EEPROM, read/write Engine ECU, read/write immobilizer ECU, read/write MC9S12 Encryption chip, read/write IC card, read/write Mercedes Infrared key, remote frequency detect and more.

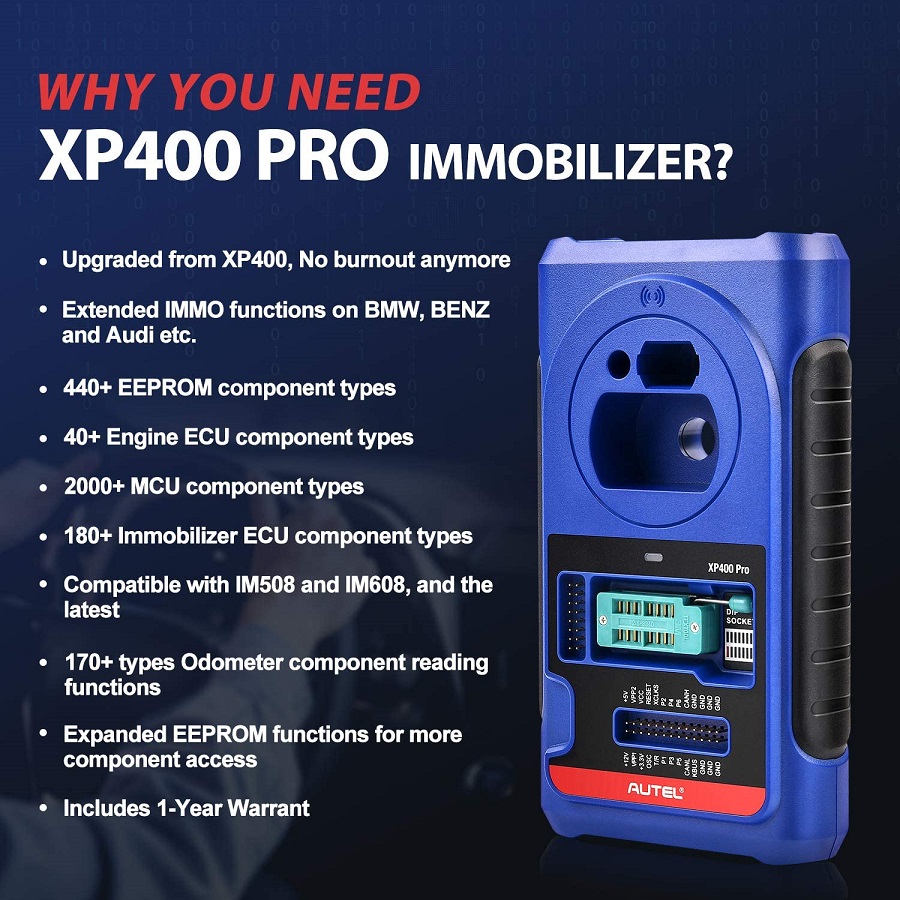

Top Reasons Why You Need XP400 Pro?

1. Expanded EEPROM functions for more component access
2. Extended IMMO functions on BMW, BENZ and Audi etc.
3. 170+ types Odometer component reading functions
4. 180+ Immobilizer ECU component types
5. 40+ Engine ECU component types
6. 2000+ MCU component types
7. 440+ EEPROM component types
8. Compatible with IM508 and IM608


Advanced Key Programming Vehicle Coverage when combined with XP400Pro:

Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost

BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost

Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020

Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020

Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020

Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020

LandRover/Jaguar
*Add Key/All Key Lost up to 2019

Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump

Advanced Programming Functions

1. EEPROM Read/Write
2. MCU Read/Write
3. Key Programming
4. Merc-edes Key Read/Write
5. Remote Frequency Detect

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro (please check the below illustration).

Comparison Table for XP400, XP400 Pro and Xhorse VVDI Prog


XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJI-TSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BE-NZ-->> ESL_W209_W906(Moto-rola) read/write/erase function
IMMO-->> BM-W-->>EWS3 module read/write function
REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400 Pro Adds Support for Following IMKPA Accessories (Need to Buy IMKPA Accessories Separately)

APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

Autel XP400 PRO Specifications:

Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current < 500 mA
Maximum Consumption: 2.5 W
Device Dimensions (L*W*H): 168 mm * 98 mm * 30 mm
Net Weight: 520 g

Package Includes

1PC x MaxiIM IM508 Tablet
1PC x XP200 Key Programmer
1PC x Main Cable
1PC x Mini USB Cable
1PC x USB External Power Adapter
1PC x APB001 (EEPROM Adapter)
1PC x APB002 (68HC908 Adapter)
1PC x APA002 (EEPROM Socket)
1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)
1PC x AAC001 – MED17 Cable
1PC x KIA-10 Adaptor
1PC x KIA-20 Adaptor
1PC x Mazda-17 Adaptor
1PC x Honda-3 Adaptor
1PC x Carrying Case
1PC x Quick reference guide
1pc x XP400 Pro Main Unite
1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector
1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB–Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line
Contact Information

Live Support: Tidio Online Support

Whatsapp:+86 18995643579

Email: Sales@AutelTools.eu

Shipping Warranty

If you have no special requirements, we automatically select the shipping warehouse and shipping method for you by default.

EU Warehouse Shipping:2-6 working days. We have stocked up hot sale items in EU Warehouse , which is more convenient for customers. Free TAX, faster shipping with cheaper price. Orders from EU will be delivered by DE DHL Post or Royalmail Hermes

DHL Shipping: 5-7 working days, To help you clearance we will help declare a lower price on the invoice to help clearance. If address is remote area, you need pay remote freight or we will ship by Normal Post or Yanwen/EMS/Aramex Express.Please remember to leave message if you have any special requirement.

Yanwen Express: 7-10 working days, usually No Tax for European Countries or Remote Area . The tax was pre-paid, when package reached, there's no tax no extra fee for customers.Due to high custom tax in European Countries,Like United Kingdom, Germany, France, Italy, Spain, Belgium,Austria, Portugal, Hungary,etc, we will use Yanwen express or DHL.
(Default ship via DHL,if you need other shipment method , please inform us first. thank you)

4PX Postal Service:  10-12 working days,although takes long time but also free tax

Product Warranty

All the Vident tools in our site we provide one year warranty.

Technical Service

1. If you have any technical problem, please contact us online or by email Sales@AutelTools.eu
2. Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

 Refund policy

1. Damaged tool Service: If the product you received has been damaged during the shipping, please report to local DHL office/Post office immediately and ask for damage proof, then contact our website customer service for exchange service.
2. Product Quality problem for refund or exchange: If the product has any problems, please contact our customer service online within 7 days and return the item to us within 30 days upon the arrival.If you not contact us within 7 days and not return to us within 30days, it is considered as used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT.
3. Return Service: All returned items MUST BE in the original packaging and you need to provide us with the shipping tracking number, specific reason for the return, and also your order number. Buyer pays return shipping fee.
